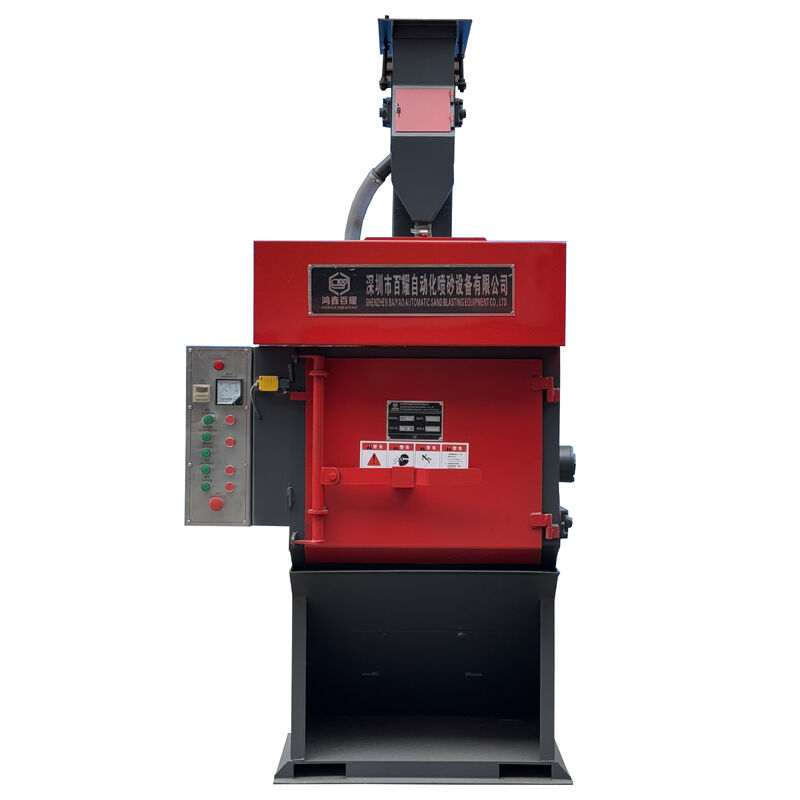

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine

Place of Origin:

Guangdong, China

Brand Name:

HONGXINBAIYAO

Certification:

CE

Model Number:

BY-324

Chat Now
Request A Quote
Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine
Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine
Product Details
Core Components:
Engine, Bearing, Gearbox, Motor, Gear
Power(w):
5kw
Blasting Media:
Steel Balls
Advantages:
High Performance
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$3500
Payment Terms
T/T
Related Products
Good price BY-324 Tumble Belt Shot Blasting Machine Small Automatic Shot Blaster online video

BY-324 Tumble Belt Shot Blasting Machine Small Automatic Shot Blaster

Chat Now
Good price Large Section Steel Shot Blasting Machine Hook Type online video

Large Section Steel Shot Blasting Machine Hook Type

Chat Now
Good price Wheel Hub Shot Blasting Machine Hanger Type Shot Peening online video

Wheel Hub Shot Blasting Machine Hanger Type Shot Peening

Chat Now
Good price Car Hubs Shot Blasting Machine Hook Type Shotblasting Machine online video

Car Hubs Shot Blasting Machine Hook Type Shotblasting Machine

Chat Now
Contact Us
86-13824356804
bysparklesmachine@gmail.com
Chat Now
Product Description
BY-324 Tumble Belt Shot Blasting Machine Small Automatic Shot Blaster

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 0

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 1

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 2

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 3

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 4

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 5

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 6

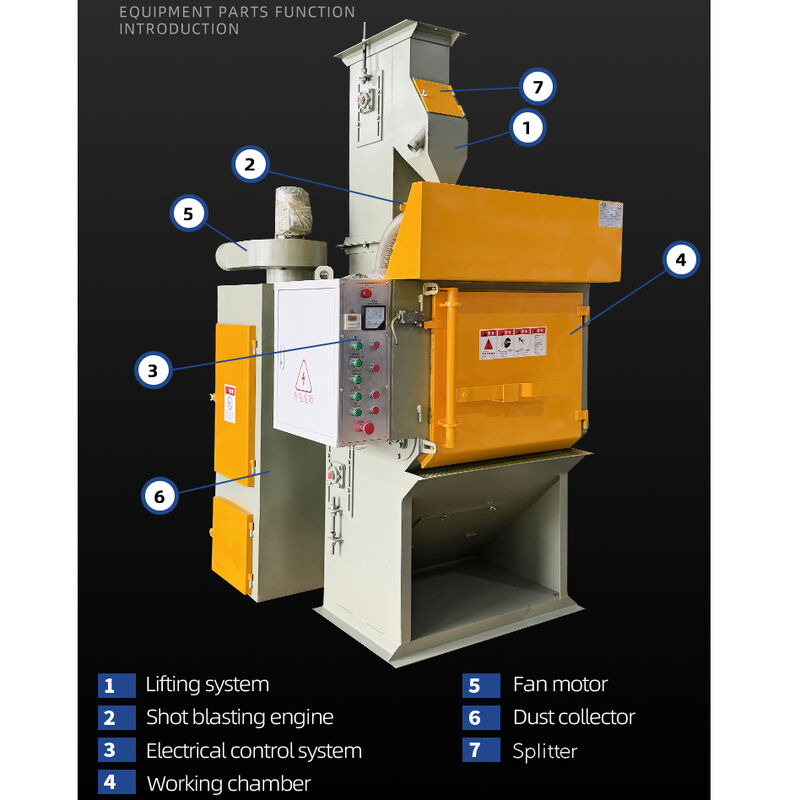

Working Principle

The machine adopts a rubber crawler structure to hold workpieces. During operation, the crawler rotates continuously to turn over
materials, while the blast wheel accelerates steel shots to impact the workpiece surface at high speed. Used shots are recycled
through screw conveyor, elevator and separator for reuse. Dust is collected and filtered by a dedicated dust collector to ensure
clean production. After cleaning, the crawler
Product Images

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 7

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 8

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 9

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 10

Small Parts Shot Blasting Machine Automatic Shot Blasting Cleaning Machine 11

Main Specifications


* Crawler diameter: 400mm
* Max loading capacity: 80–100kg
* Max single workpiece weight: ≤5kg
* Cleaning efficiency: 400–800kg/h (castings)
* Blast wheel power: 4kW
* Total power: approx. 5kW
* Shot flow rate: 40kg/min

Features & Advantages


* Rubber crawler design reduces workpiece collision and damage, low noise.
* Automatic loading, cleaning and discharging, labor-saving.
* High-efficiency shot recycling system, low abrasive consumption.
* Compact structure, small footprint, easy maintenance.
* Equipped with dust removal system, eco-friendly and compliant.
